Alert Generators

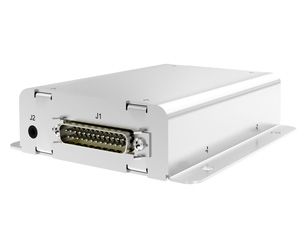

JA37-001

Aural Message Generator

3 Channel

Outputs: 2 Fully Isolated


Stored Messages: 3 separate (11 seconds) messages


Weight: 0.50 lb. [0.22 kg] Max.


Power: 11 to 30Vdc


Mounting: Remote


Approvals: FAA TSO C139 & TC CAN-TSO C139



View available audio sound files

JA37-002

Aural Message Generator

3 Channel - Cabin Briefing System

Outputs: 2 Fully Isolated


Stored Messages: 3 separate (44 seconds) messages


Weight: 0.50 lb. [0.22 kg] Max.


Power: 11 to 30Vdc


Mounting: Remote


Contact JAC for TSO status



View available audio sound files

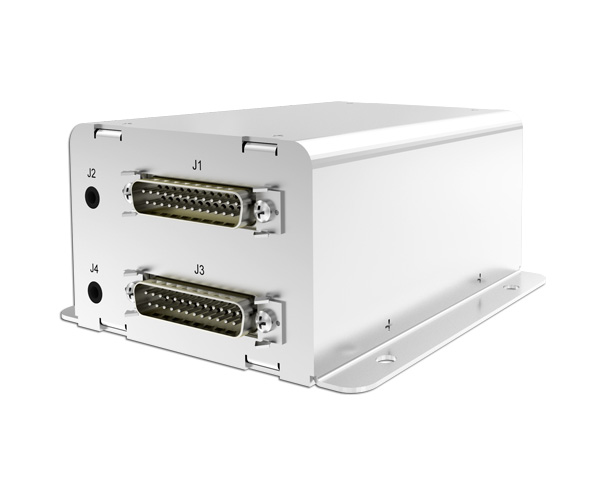

JA37-201

Aural Message Generator

6 Channel

Outputs: 4 Fully Isolated


Stored Messages: 6 separate (11 seconds) messages


Weight: 1.00 lb. [0.44 kg] Max.Weight:


Power: 11 to 30Vdc


Mounting: Remote


Contact JAC for TSO Status



View available audio sound files

JA37-202

Aural Message Generator

6 Channel - Cabin Briefing System

Outputs: 4 Fully Isolated


Stored Messages: 6 separate (44 seconds) messages


Weight: 1.00 lb. [0.44 kg] Max.


Power: 11 to 30Vdc


Mounting: Remote


Contact JAC for TSO Status



View available audio sound files

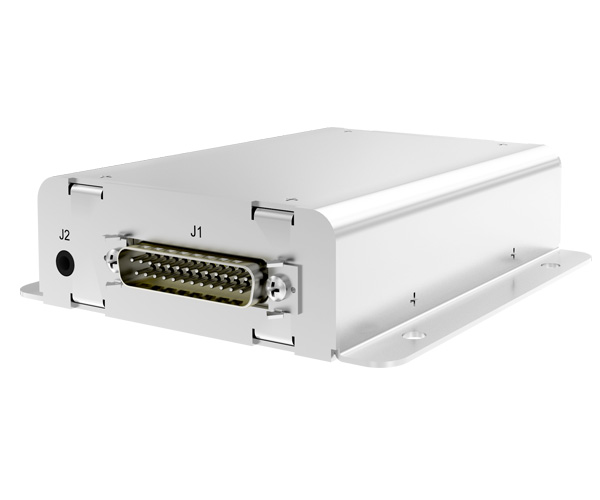

JA37-300

Aural Message Generator

3 Channel - Analog Inputs

Inputs: Programmable for different sensor types


Stored Messages: 3 separate (11 Seconds) messages


Outputs: 2 Fully Isolated


Weight: 0.74 lb. [0.33 kg] Max.


Power: 11 to 30Vdc


Mounting : Remote


Contact JAC for TSO Status


View available audio sound files

JA37-600

Aural Message Generator

6 Channel - Analog Inputs

Inputs: Programmable for different sensor types


Stored Messages: 6 separate (11 Seconds) messages


Outputs: 4 Fully Isolated


Weight: 1.50 lb. [0.66 kg] Max.Weight:


Power: 11 to 30Vdc


Mounting : Remote


Contact JAC for TSO Status


View available audio sound files
