Dual Audio Controllers

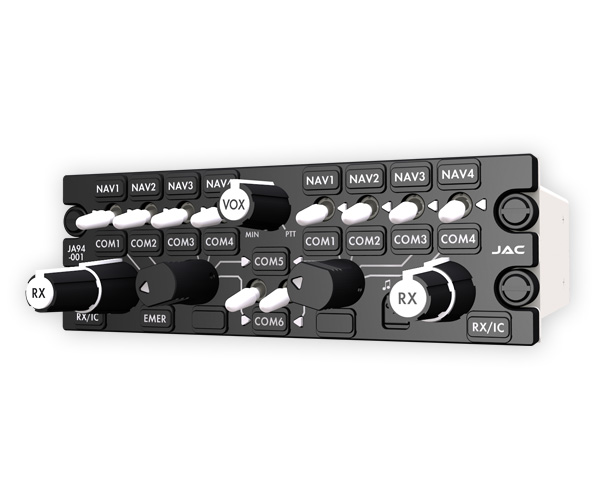

JA94-001A

Eight User - 6 Transceivers - Dual Audio Controller

Headsets: 8


Transceivers: 6


Receivers: 4 switched + 3 Directs


Weight: 1.99 lb. [0.91 kg] Max.


Power: 11 to 32.2Vdc


Legends: Removable


Remote Transmit Capable


Simulcast Capable
Approvals: TC CAN-TSO-C139

JA94-N01A

Eight User - 6 Transceivers - Dual Audio Controller

NVG

Contains all the features of the JA94-001A


including the following:


  NVIS compatible removable legends


  NVIS compatible removable annunciators


  Fully pin and functionally compatible with the JA94-001A


Approvals: TC CAN-TSO-C139

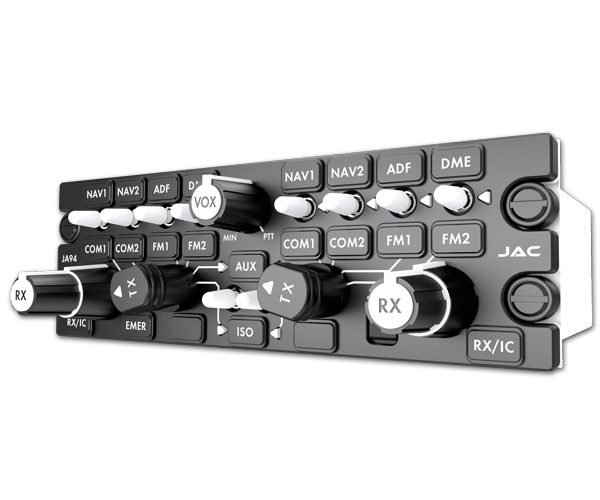

JA94-002A

Eight User - 5 Transceivers - Dual Audio Controller

Headsets: 8


Transceivers: 5


Pilot / Copilot ICS isolation switches


Receivers: 4 switched + 3 Directs


Weight: 1.99 lb. [0.91 kg] Max.


Power: 18 to 32.2Vdc


Legends: Removable


Remote Transmit Capable

JA94-N02A

Eight User - 5 Transceivers - Dual Audio Controller

NVG

Contains all the features of the JA94-002A


including the following:


  NVIS compatible removable legends


  NVIS compatible removable annunciators


  Fully pin and functionally compatible with the JA94-002A




JA94-044A

Eight User - 6 Transceivers - Dual Audio Controller

PIN for PIN Compatible with AMS44!

Headsets: 8


Transceivers: 6


Receivers: 4 switched + 3 Directs


Weight: 1.99 lb. [0.91 kg] Max.


Power: 18 to 32.2Vdc
Legends: Removable


Remote Transmit Capable, Simulcast Capable


Same transceiver selection order as AMS44


Approvals: TC CAN-TSO-C139

JA94-N44A

Eight User - 6 Transceivers - Dual Audio Controller

NVG - PIN for PIN Compatible with AMS44!

Contains all the features of the JA94-044A


including the following:


  NVIS compatible removable legends


  NVIS compatible removable annunciators


  Fully pin and functionally compatible with the JA94-044A
