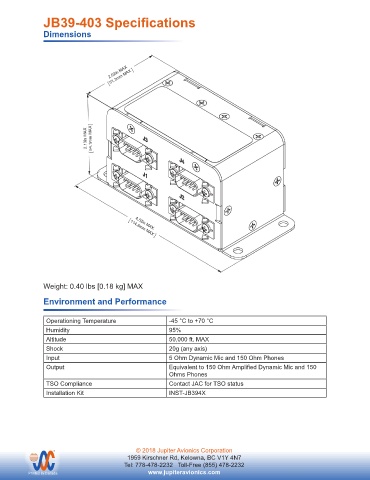

JB39-403 Specifications

Dimensions

2.02in MAX
51.3mm MAX

2.13in MAX 54.1mm MAX

4.52in MAX
114.8mm MAX

UNLESS OTHERWISE SPECIFIED PREPARED TAT
Weight: 0.40 lbs [0.18 kg] MAX
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1 CHECKED 07-11-18
2 DEC PLACE:
0.01
Environment and Performance TAT TITLE Dynamic Microphone Adapter - 4 Channel
3 DEC PLACE:
0.005
0.5 DEG
ANGLES:
JAC
APPROVED 07-11-18 NCAGE CODE PART NO. SHEET
Operationing Temperature -45 °C to +70 °C KDV L00N3 JB39-403 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
Humidity FINISH: N/A 95% TO JUPITER AVIONICS CORP. JB39-403 3D Model Rev A.SLDDRW
Altitude 50,000 ft. MAX
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT DRAWING NOT TO SCALE
Shock 20g (any axis)
Input 5 Ohm Dynamic Mic and 150 Ohm Phones
Output Equivalent to 150 Ohm Amplified Dynamic Mic and 150
Ohms Phones
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JB394X
