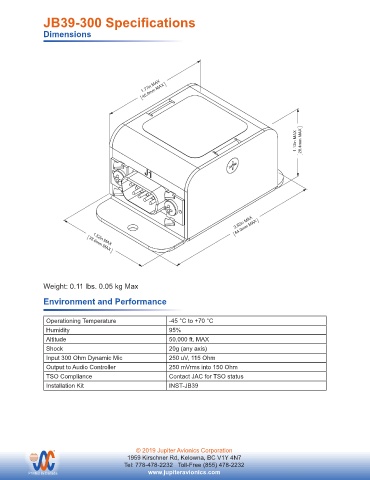

JB39-300 Specifications

Dimensions

1.77in MAX
45.0mm MAX

1.12in MAX 28.4mm MAX

2.52in MAX
64.0mm MAX

1.52in MAX
38.6mm MAX

UNLESS OTHERWISE SPECIFIED
Weight: 0.11 lbs. 0.05 kg Max PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1 CHECKED 04-10-18
Environment and Performance TAT TITLE Low Impedance Headset Adapter - 300 Ohm Mic -
0.01
2 DEC PLACE:
3 DEC PLACE:
0.005
ANGLES:
0.5 DEG
JAC Remote Mount
APPROVED 04-11-18 NCAGE CODE PART NO. SHEET
Operationing Temperature -45 °C to +70 °C L00N3 JB39-300 1/1
KDV
CONFIDENTIAL & PROPRIETARY DOC. NO.
Humidity MATERIAL: N/A 95%
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JB39-300 3D Model Rev A.SLDDRW
Altitude
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT 50,000 ft. MAX
Shock 20g (any axis)
Input 300 Ohm Dynamic Mic 250 uV, 115 Ohm
Output to Audio Controller 250 mVrms into 150 Ohm
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JB39
