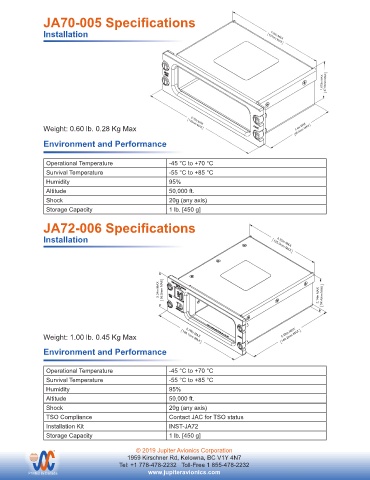

Page 133 - Jupiter Product Guide 2025 Rev N

JA70-005 Specifications

Installation 127mm MAX
5.00in MAX

1.875in MAX 47.63mm MAX

5.75in MAX
86.4mm MAX
Weight: 0.60 lb. 0.28 Kg Max 146mm MAX 3.4in MAX
Environment and Performance

UNLESS OTHERWISE SPECIFIED
Operational Temperature -45 °C to +70 °C PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
JAC
1 DEC PLACE: 0.1
Survival Temperature -55 °C to +85 °C 0.01 CHECKED 11-28-13 TITLE Five Dzus - Glove Box
2 DEC PLACE:
0.005
3 DEC PLACE:
TAT
0.5 DEG
ANGLES:
JAC
Humidity 95% APPROVED 12-03-13 NCAGE CODE PART NO. SHEET
L00N3
1/1
JA70-005
KDV
Altitude 50,000 ft. MATERIAL: N/A N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
JA70-005 3D Model Rev B.SLDDRW
FINISH:
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT DRAWING NOT TO SCALE
Shock 20g (any axis)
Storage Capacity 1 lb. [450 g]
JA72-006 Specifications
Installation 125.0mm MAX
4.92in MAX
2.24in MAX 56.9mm MAX 2.14in MAX 54.4mm MAX

140.2mm MAX
Weight: 1.00 lb. 0.45 Kg Max 146.1mm MAX 5.52in MAX
5.75in MAX
Environment and Performance

Operational Temperature -45 °C to +70 °C
Survival Temperature -55 °C to +85 °C PREPARED TAT
UNLESS OTHERWISE SPECIFIED
Humidity 95% DIMENSIONS ARE IN INCHES CHECKED
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE:
Altitude 50,000 ft. 0.01 TITLE Glove Box with USB Charger
3 DEC PLACE:
0.005
ANGLES:
0.5 DEG
Shock 20g (any axis) APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA72-006 1/1
TSO Compliance Contact JAC for TSO status
N/A
CONFIDENTIAL & PROPRIETARY DOC. NO.
MATERIAL:
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA72-006 3D Model Rev F.SLDDRW
Installation Kit JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT INST-JA72
Storage Capacity 1 lb. [450 g]
© 2019 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: +1 778-478-2232 Toll-Free 1 855-478-2232
Printed in Canada www.jupiteravionics.com
