Page 203 - Jupiter Product Guide 2025 Rev N

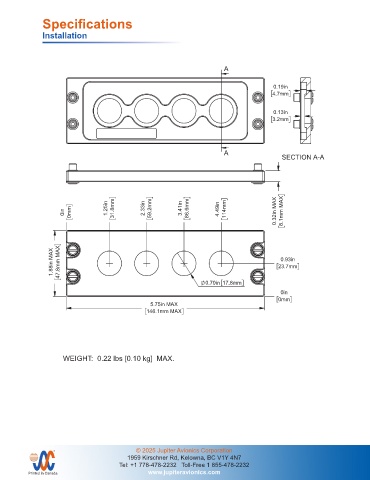

Specifications

Installation

A

0.19in
4.7mm

0.13in
3.2mm

A
SECTION A-A

1.25in 31.8mm 59.2mm 86.6mm 4.49in 114mm
0in 0mm 2.33in 3.41in 0.32in MAX 8.1mm MAX

1.88in MAX 47.8mm MAX 0.93in

23.7mm

0.70in 17.8mm

0in
0mm
5.75in MAX
146.1mm MAX

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
WEIGHT: 0.22 lbs [0.10 kg] MAX.
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
CENTER OF GRAVITY 3 DEC PLACE: 0.005 Four Headset Jacks - 5 Dzus
0.03in [0.8mm] ANGLES: 0.5 DEG
WEIGHT: 0.22 lbs [0.10 kg] MAX. APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA71-HJ45 1/1

MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP. JA71-HJ45 Mechanical Installation Rev A.SLDDRW
FINISH: N/A DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
