Page 205 - Jupiter Product Guide 2025 Rev N

72.9mm
2.87in
0.56in 14.2mm

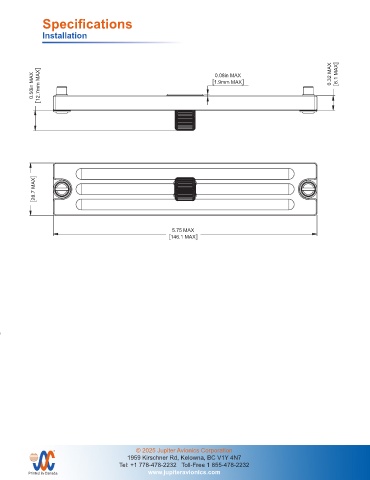

Specifications
Installation

0.08in MAX 0.32 MAX 8.1 MAX
0.50in MAX 12.7mm MAX 1.9mm MAX

1.13 MAX 28.7 MAX

5.75 MAX 0.08in
146.1 MAX 2mm

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1
CENTER OF GRAVITY 2 DEC PLACE: 0.01 CHECKED 07-13-23 TITLE
TAT
0.03in [0.8mm] 3 DEC PLACE: 0.005 Pen Holder - 3 Dzus
ANGLES: 0.5 DEG
JAC
WEIGHT: 0.16 lbs [0.07 kg] MAX. APPROVED 03-21-24 NCAGE CODE PART NO. SHEET
KDV L00N3 JA71-PH1 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA71-PH1 Mechanical Installation Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
