Page 199 - Jupiter Product Guide 2025 Rev N

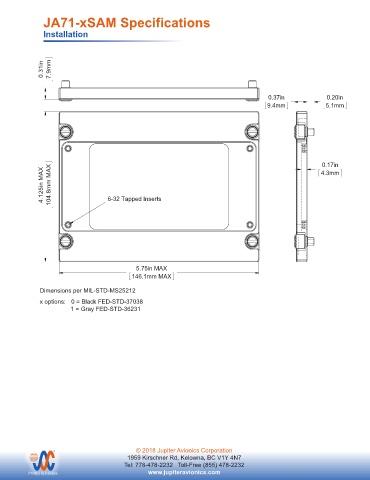

JA71-xSAM Specifications

Installation

0.31in 7.9mm

0.37in 0.20in
9.4mm 5.1mm

0.17in
4.125in MAX 104.8mm MAX 6-32 Tapped Inserts
4.3mm

5.75in MAX
146.1mm MAX
UNLESS OTHERWISE SPECIFIED PREPARED TAT
Dimensions per MIL-STD-MS25212 DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
CENTER OF GRAVITY
2 DEC PLACE:
x options: 0 = Black FED-STD-37038 0.01 CHECKED TITLE
3 DEC PLACE:
0.005
0.03in [0.8mm] ANGLES: 0.5 DEG Standby Attitude Module Mounting Plate - 11 Dzus
1 = Gray FED-STD-36231
WEIGHT: ?.?? lbs [?.?? Kg] MAX. SHEET
APPROVED NCAGE CODE PART NO.
L00N3 JA71-0SAM 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA71-0SAM Mechanical Installation Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
