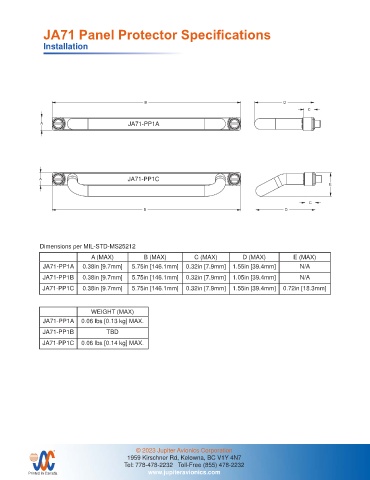

JA71 Panel Protector Specifications

Installation

B D
C

A JA71-PP1A

A JA71-PP1C
E

C
B D

Dimensions per MIL-STD-MS25212
A (MAX) B (MAX) C (MAX) D (MAX) E (MAX)
0.32in [7.9mm]
5.75in [146.1mm]
JA71-PP1A 0.38in [9.7mm] UNLESS OTHERWISE SPECIFIED PREPARED TAT 1.55in [39.4mm] N/A
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
JA71-PP1B 0.38in [9.7mm] 5.75in [146.1mm] CHECKED TITLE 1.05in [39.4mm] N/A
0.32in [7.9mm]
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG Panel Protector - One Dzus - Offset
JA71-PP1C 0.38in [9.7mm] 5.75in [146.1mm] 0.32in [7.9mm] 1.55in [39.4mm] 0.72in [18.3mm]
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA71-PP1O 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
WEIGHT (MAX) FINISH: N/A DRAWING NOT TO SCALE JA71-PP1O Mechanical Installation Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
JA71-PP1A 0.06 lbs [0.13 kg] MAX.
JA71-PP1B TBD
JA71-PP1C 0.06 lbs [0.14 kg] MAX.
