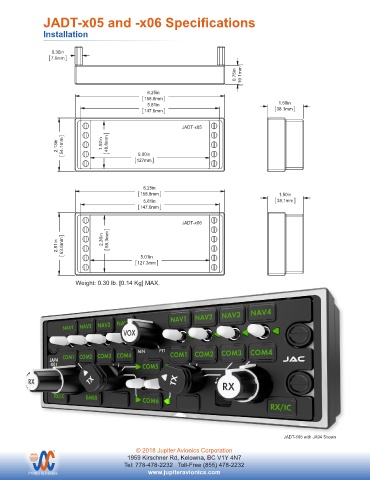

JADT-x05 and -x06 Specifications

Installation

0.30in
7.6mm

0.75in 19.1mm

6.25in
158.8mm
5.81in 1.50in
147.6mm 38.1mm

JADT-x05

2.13in 54.1mm 1.92in 48.8mm
5.00in
127mm

6.25in
158.8mm 1.50in
5.81in 38.1mm
147.6mm

JADT-x06

2.51in 63.6mm 2.30in 58.3mm

5.01in
127.3mm

Weight: 0.30 lb. [0.14 Kg] MAX.
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG 5 Dzus to Tray Adapter
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JADT-005 1/2
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JADT-005 Mechanical Installation Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT

JADT-105 with JA94 Shown
