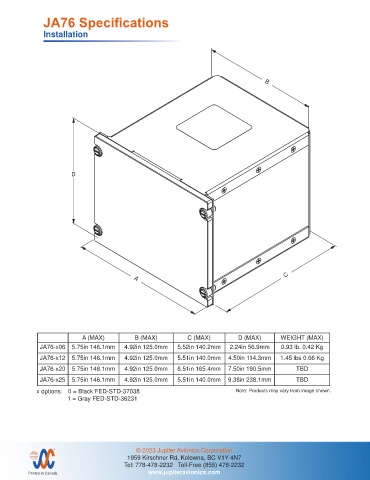

JA76 Specifications

Installation

B

D

C
A

A (MAX) B (MAX) C (MAX) D (MAX) WEIGHT (MAX)
UNLESS OTHERWISE SPECIFIED PREPARED TAT
JA76-x06 5.75in 146.1mm 4.92in 125.0mm 5.52in 140.2mm 2.24in 56.9mm 0.93 lb. 0.42 Kg
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
JA76-x12 5.75in 146.1mm 4.92in 125.0mm 5.51in 140.0mm JAC 1.45 lbs 0.66 Kg
4.50in 114.3mm
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED 05-31-21 TITLE
JA76-x20 5.75in 146.1mm 4.92in 125.0mm 6.51in 165.4mm TAT 7.50in 190.5mm TBD
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG Twelve Dzus Box - Blank Faceplate
JA76-x25 5.75in 146.1mm 4.92in 125.0mm 5.51in 140.0mm JAC TBD
9.38in 238.1mm
PART NO.
NCAGE CODE
x options: 0 = Black FED-STD-37038 APPROVED 06-07-21 Note: Products may vary from image shown. SHEET
1/1
JA76-012
L00N3
KDV
1 = Gray FED-STD-36231
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP. JA76-012 3D Model Rev A.SLDDRW
FINISH: N/A DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
