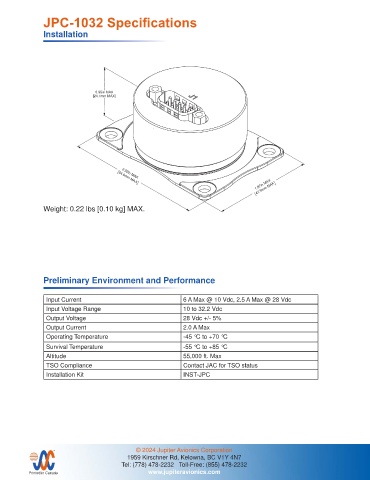

JPC-1032 Specifications

Installation

0.95in MAX
[24.1mm MAX]

2.52in MAX
1.87in MAX
64.0mm MAX
47.5mm MAX

Weight: 0.22 lbs [0.10 kg] MAX.

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE: 0.01 12-20-23 TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG Power Converter - 10V to 32V Input
JAC
APPROVED 12-29-23 NCAGE CODE PART NO. SHEET
KDV L00N3 JPC-1032 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
Preliminary Environment and Performance JPC-1032 3D Model (SB0167) Rev B.SLDDRW
FINISH: N/A
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Input Current 6 A Max @ 10 Vdc, 2.5 A Max @ 28 Vdc
Input Voltage Range 10 to 32.2 Vdc
Output Voltage 28 Vdc +/- 5%
Output Current 2.0 A Max
Operating Temperature -45 °C to +70 °C
Survival Temperature -55 °C to +85 °C
Altitude 55,000 ft. Max
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JPC
