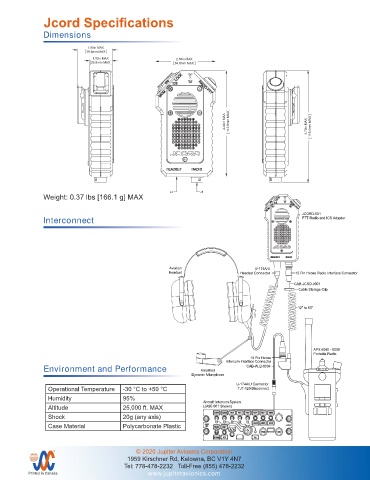

Jcord Specifications

Dimensions

1.55in MAX
39.4mm MAX
1.02in MAX 2.55in MAX
25.9mm MAX 64.8mm MAX

4.44in MAX 112.8mm MAX 4.70in MAX 119.4mm MAX

J2 J1
Weight: 0.37 lbs [166.1 g] MAX

JCORD-001
Interconnect PTT Radio and ICS Adapter

RADIO MIC J2 J1
LEVEL Aviation U-174A/U
ADJUSTMENT
Headset Headset Connector 12 Pin Hirose Radio Interface Connector
RADIO TO
INTERCOM LEVEL CAB-JCRD-0001
ADJUSTMENT
Cable Storage Clip
12" to 60"

REAR VIEW
WITH REAR COVER AND CLIP REMOVED
APX 6000 - 8000
Portable Radio
10 Pin Hirose
Intercom Interface Connector
Environment and Performance Amplified CAB-WJ2-0004
Dynamic Microphone
U-174A/U Connector
Operational Temperature -30 °C to +50 °C TJT-120 Disconnect
Humidity 95%
UNLESS OTHERWISE SPECIFIED PREPARED Aircraft Intercom System
TAT
DIMENSIONS ARE IN INCHES
Altitude 25,000 ft. MAX (JA95-001 Shown)
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE: 0.01
Shock 20g (any axis) 0.5 DEG TITLE PTT Radio & ICS Adapter
3 DEC PLACE: 0.005
WEIGHT: 0.37 lbs [166.1 g] MAX
ANGLES:
Case Material Polycarbonate Plastic APPROVED NCAGE CODE PART NO. SHEET
L00N3 JCORD-001 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
FINISH: N/A TO JUPITER AVIONICS CORP. JCORD-001 Mechanical Installation Rev D.SLDDRW
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS PORTRAIT SIZEB REV B.DRWDOT
