Page 115 - Jupiter Product Guide 2025 Rev N

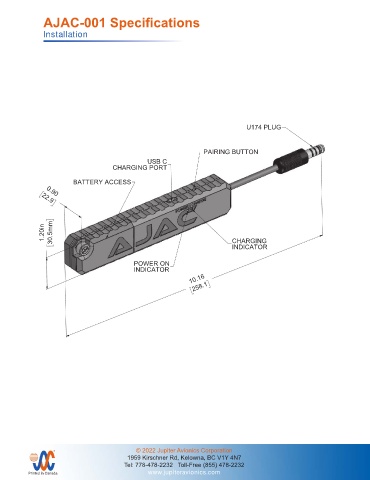

AJAC-001 Specifications

Installation

U174 PLUG

PAIRING BUTTON
USB C
CHARGING PORT

BATTERY ACCESS
0.90
22.9

1.20in 30.5mm

CHARGING
INDICATOR

POWER ON
INDICATOR
10.16
258.1
