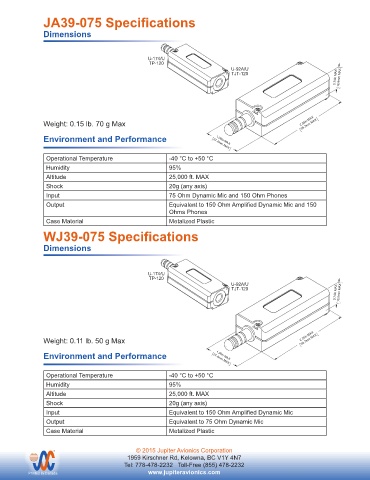

JA39-075 Specifications

Dimensions

U-174/U
TP-120
U-92A/U
0.74in MAX 18.8mm MAX
TJT-120

59.7mm MAX
Weight: 0.15 lb. 70 g Max 2.35in MAX

Environment and Performance 27.4mm MAX
1.08in MAX

Operational Temperature -40 °C to +50 °C
Humidity 95%
Altitude 25,000 ft. MAX
Shock 20g (any axis) UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
Input 75 Ohm Dynamic Mic and 150 Ohm Phones
CHECKED
TITLE
2 DEC PLACE:
0.01
3 DEC PLACE:
0.005
ANGLES: 0.5 DEG Low Impedance Headset Adapter - 5 Ohm Mic - 8 Ohm
Output Equivalent to 150 Ohm Amplified Dynamic Mic and 150 Phones SHEET
PART NO.
NCAGE CODE
APPROVED
Ohms Phones L00N3 JA39-001 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
Case Material JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT Metalized Plastic N/A TO JUPITER AVIONICS CORP. JA39-001 3D Model Rev C.SLDDRW
FINISH:
DRAWING NOT TO SCALE
WJ39-075 Specifications
Dimensions
U-174/U
TP-120
U-92A/U
0.74in MAX 18.8mm MAX
TJT-120

59.7mm MAX
Weight: 0.11 lb. 50 g Max 2.35in MAX
Environment and Performance 27.4mm MAX
1.08in MAX
Operational Temperature -40 °C to +50 °C
Humidity 95%
Altitude 25,000 ft. MAX
UNLESS OTHERWISE SPECIFIED PREPARED TAT
Shock 20g (any axis) DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE:
0.01
TITLE
Input Equivalent to 150 Ohm Amplified Dynamic Mic Low Impedance Headset Adapter - 5 Ohm Mic - 8 Ohm
0.005
3 DEC PLACE:
ANGLES:
0.5 DEG
Output Equivalent to 75 Ohm Dynamic Mic NCAGE CODE PART NO. Phones SHEET
APPROVED
L00N3 JA39-001 1/1
Case Material Metalized Plastic N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
MATERIAL:
FINISH: N/A TO JUPITER AVIONICS CORP. JA39-001 3D Model Rev C.SLDDRW
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
