Page 117 - Jupiter Product Guide 2025 Rev N

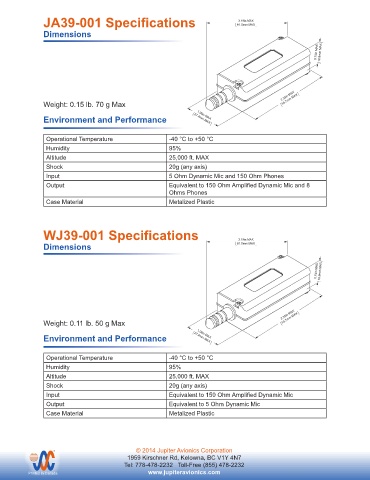

JA39-001 Specifications 81.0mm MAX
3.19in MAX
Dimensions

0.74in MAX 18.8mm MAX

2.35in MAX
59.7mm MAX
Weight: 0.15 lb. 70 g Max

Environment and Performance 27.4mm MAX
1.08in MAX

Operational Temperature -40 °C to +50 °C
Humidity 95%
Altitude 25,000 ft. MAX UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
Shock 20g (any axis) TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
0.005
3 DEC PLACE:
Input 5 Ohm Dynamic Mic and 150 Ohm Phones Low Impedance Headset Adapter - 5 Ohm Mic - 8 Ohm
ANGLES:
0.5 DEG
Phones
NCAGE CODE
PART NO.
Output Equivalent to 150 Ohm Amplified Dynamic Mic and 8 SHEET
APPROVED
L00N3
JA39-001
1/1
Ohms Phones MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
FINISH: N/A TO JUPITER AVIONICS CORP. JA39-001 3D Model Rev C.SLDDRW
DRAWING NOT TO SCALE
Case Material JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT Metalized Plastic
WJ39-001 Specifications 3.19in MAX
Dimensions 81.0mm MAX
0.74in MAX 18.8mm MAX

2.35in MAX
59.7mm MAX
Weight: 0.11 lb. 50 g Max

Environment and Performance 27.4mm MAX
1.08in MAX

Operational Temperature -40 °C to +50 °C
Humidity 95%
Altitude 25,000 ft. MAX UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
Shock 20g (any axis) TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE:
0.005
Input Equivalent to 150 Ohm Amplified Dynamic Mic Low Impedance Headset Adapter - 5 Ohm Mic - 8 Ohm
ANGLES:
0.5 DEG
Phones
APPROVED
Output Equivalent to 5 Ohm Dynamic Mic NCAGE CODE PART NO. SHEET
1/1
L00N3
JA39-001
MATERIAL:
Case Material Metalized Plastic N/A N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
JA39-001 3D Model Rev C.SLDDRW
FINISH:
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT DRAWING NOT TO SCALE
