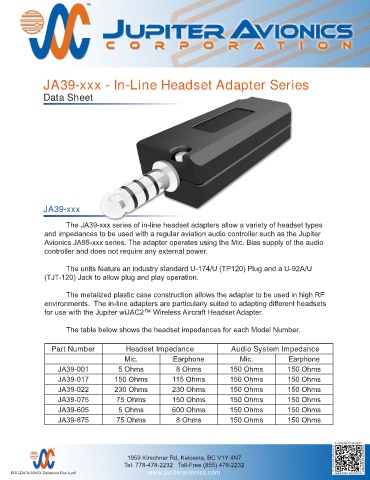

JA39-xxx - In-Line Headset Adapter Series

Data Sheet

JA39-xxx

The JA39-xxx series of in-line headset adapters allow a variety of headset types
and impedances to be used with a regular aviation audio controller such as the Jupiter
Avionics JA95-xxx series. The adapter operates using the Mic. Bias supply of the audio
controller and does not require any external power.

The units feature an industry standard U-174/U (TP120) Plug and a U-92A/U
(TJT-120) Jack to allow plug and play operation.

The metalized plastic case construction allows the adapter to be used in high RF
environments. The in-line adapters are particularly suited to adapting different headsets
for use with the Jupiter wiJAC2™ Wireless Aircraft Headset Adapter.

The table below shows the headset impedances for each Model Number.

Part Number Headset Impedance Audio System Impedance
Mic. Earphone Mic. Earphone
JA39-001 5 Ohms 8 Ohms 150 Ohms 150 Ohms
JA39-017 150 Ohms 115 Ohms 150 Ohms 150 Ohms
JA39-022 230 Ohms 230 Ohms 150 Ohms 150 Ohms
JA39-075 75 Ohms 150 Ohms 150 Ohms 150 Ohms

JA39-605 5 Ohms 600 Ohms 150 Ohms 150 Ohms
JA39-875 75 Ohms 8 Ohms 150 Ohms 150 Ohms
