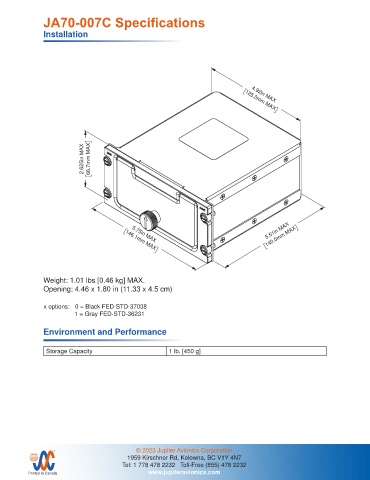

JA70-007C Specifications

Installation 4.92in MAX

2.625in MAX 66.7mm MAX 125.0mm MAX

5.51in MAX
140.0mm MAX
5.75in MAX
146.1mm MAX

Weight: 1.01 lbs [0.46 kg] MAX.
Opening: 4.46 x 1.80 in (11.33 x 4.5 cm)

x options: 0 = Black FED-STD-37038
1 = Gray FED-STD-36231
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
TOLERANCES:
JAC
Environment and Performance CHECKED 10-26-22
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01
3 DEC PLACE: 0.005 TAT TITLE
ANGLES: 0.5 DEG Seven Dzus - Glove Box with Cover
Storage Capacity 1 lb. [450 g] JAC
APPROVED 10-27-22 NCAGE CODE PART NO. SHEET
KDV L00N3 JA70-007C 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA70-007C 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
