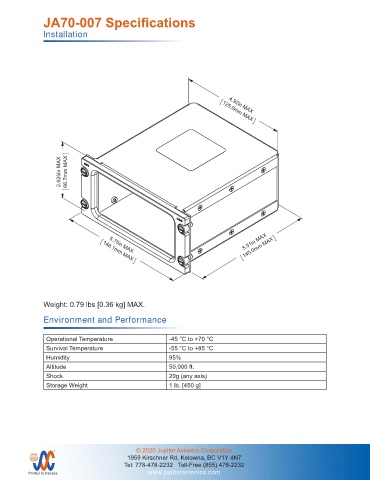

JA70-007 Specifications

Installation

4.92in MAX

2.625in MAX 66.7mm MAX 125.0mm MAX

5.51in MAX
140.0mm MAX
5.75in MAX
146.1mm MAX

Weight: 0.79 lbs [0.36 kg] MAX.

Environment and Performance

-45 °C to +70 °C
Operational Temperature PREPARED TAT
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
Survival Temperature -55 °C to +85 °C
TOLERANCES:
JAC
Humidity 1 DEC PLACE: 0.1 CHECKED 11-27-20 TITLE
95%
2 DEC PLACE: 0.01
Altitude 3 DEC PLACE: 0.005 50,000 ft. TAT Seven Dzus - Glove Box
ANGLES: 0.5 DEG
JAC
Shock 20g (any axis) NCAGE CODE PART NO. SHEET
Storage Weight APPROVED 12-07-20 L00N3 JA70-007 1/1
1 lb. [450 g]
KDV
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA70-007 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
