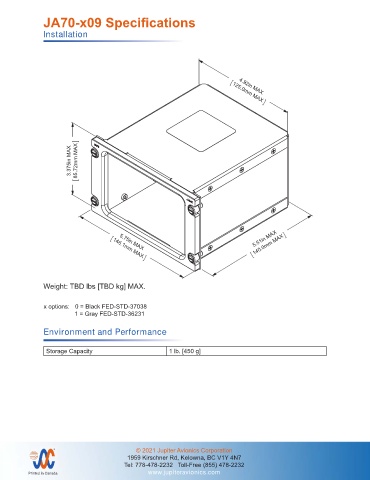

JA70-x09 Specifications

Installation 125.0mm MAX

4.92in MAX

3.375in MAX 85.72mm MAX

5.51in MAX
140.0mm MAX

5.75in MAX
146.1mm MAX

Weight: TBD lbs [TBD kg] MAX.

x options: 0 = Black FED-STD-37038
1 = Gray FED-STD-36231
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
Environment and Performance JAC
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE: 0.01 12-21-20 TITLE
TAT
3 DEC PLACE: 0.005
Storage Capacity ANGLES: 0.5 DEG 1 lb. [450 g] Nine Dzus - Glove Box
JAC
APPROVED 12-22-20 NCAGE CODE PART NO. SHEET
KDV L00N3 JA70-009 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA70-009 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
