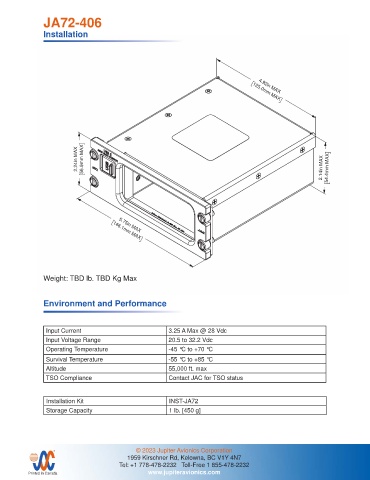

JA72-406

Installation 125.0mm MAX

4.92in MAX

2.24in MAX 56.9mm MAX 2.14in MAX 54.4mm MAX

5.75in MAX
146.1mm MAX

Weight: TBD lb. TBD Kg Max

Environment and Performance PREPARED TAT
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005 Glove Box with USB-C Charger - 6 Dzus
Input Current ANGLES: 0.5 DEG 3.25 A Max @ 28 Vdc
Input Voltage Range 20.5 to 32.2 Vdc NCAGE CODE PART NO. SHEET
APPROVED
Operating Temperature -45 °C to +70 °C L00N3 JA72-406 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
Survival Temperature FINISH: N/A -55 °C to +85 °C JA72-406 3D Model Rev A.SLDDRW
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Altitude 55,000 ft. max
TSO Compliance Contact JAC for TSO status

Installation Kit INST-JA72
Storage Capacity 1 lb. [450 g]
