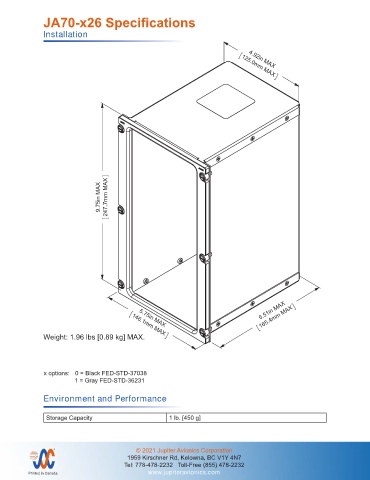

Page 153 - Jupiter Product Guide 2025 Rev N

JA70-x26 Specifications

Installation 125.0mm MAX

4.92in MAX

9.75in MAX 247.7mm MAX

6.51in MAX
165.4mm MAX

5.75in MAX
146.1mm MAX
Weight: 1.96 lbs [0.89 kg] MAX.

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
x options: 0 = Black FED-STD-37038
ANGLES ARE IN DEGREES
1 = Gray FED-STD-36231 JAC
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE: 0.01 09-27-19 TITLE
3 DEC PLACE: 0.005
Environment and Performance TAT Twenty Six Dzus - Glove Box
ANGLES: 0.5 DEG
JAC
APPROVED 09-27-19 NCAGE CODE PART NO. SHEET
Storage Capacity 1 lb. [450 g] KDV L00N3 JA70-026 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA70-026 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
