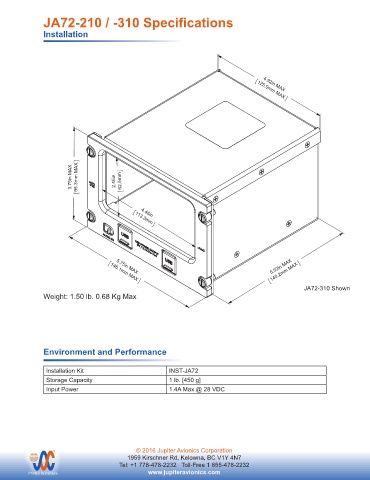

Page 155 - Jupiter Product Guide 2025 Rev N

JA72-210 / -310 Specifications

Installation 125.0mm MAX

4.92in MAX

MAX MAX
3.75in 95.3mm 2.46in 62.5mm 113.3mm

4.46in

5.52in MAX
140.2mm MAX
5.75in MAX
146.1mm MAX
JA72-310 Shown
Weight: 1.50 lb. 0.68 Kg Max

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED 02-22-16 TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG Glove Box with Dual USB Charger and Audio Jack
Environment and Performance JAC - 10 Dzus
APPROVED 02-29-16 NCAGE CODE PART NO. SHEET
KDV L00N3 JA72-310 1/1
Installation Kit MATERIAL: N/A INST-JA72 DOC. NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
Storage Capacity FINISH: N/A 1 lb. [450 g] JA72-310 3D Model Rev A.SLDDRW
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Input Power 1.4A Max @ 28 VDC
