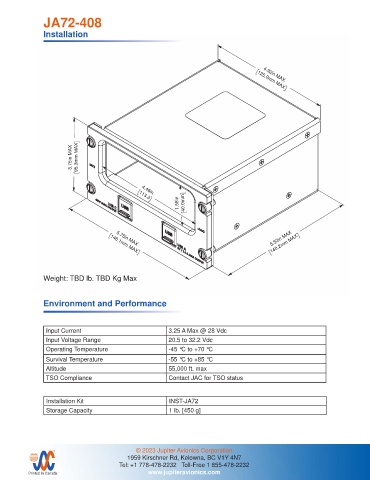

Page 159 - Jupiter Product Guide 2025 Rev N

JA72-408

Installation 125.0mm MAX

4.92in MAX

3.75in MAX 95.3mm MAX

4.46in
113.3
1.58in 40.0mm

5.52in MAX
140.2mm MAX
5.75in MAX
146.1mm MAX

Weight: TBD lb. TBD Kg Max

Environment and Performance PREPARED TAT
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005 Glove Box with USB-A and USB-C Charger - 8 Dzus
Input Current ANGLES: 0.5 DEG 3.25 A Max @ 28 Vdc
Input Voltage Range 20.5 to 32.2 Vdc NCAGE CODE PART NO. SHEET
APPROVED
Operating Temperature -45 °C to +70 °C L00N3 JA72-408 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
Survival Temperature FINISH: N/A -55 °C to +85 °C JA72-408 3D Model Rev A.SLDDRW
DRAWING NOT TO SCALE
Altitude 55,000 ft. max
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
TSO Compliance Contact JAC for TSO status

Installation Kit INST-JA72
Storage Capacity 1 lb. [450 g]

© 2023 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: +1 778-478-2232 Toll-Free 1 855-478-2232
Printed in Canada www.jupiteravionics.com
