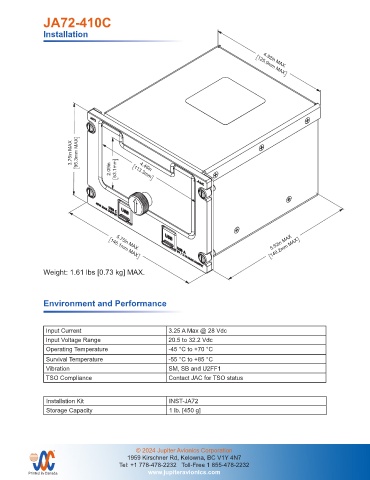

JA72-410C

Installation

4.92in MAX

125.0mm MAX

3.75in MAX 95.3mm MAX

4.46in
2.09in 53.1mm 113.3mm

5.52in MAX
5.75in MAX
140.2mm MAX
146.1mm MAX
Weight: 1.61 lbs [0.73 kg] MAX.

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
Environment and Performance
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 JAC
2 DEC PLACE: 0.01 CHECKED 03-28-24 TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG Glove Box with USB-A and USB-C Charger - 10 Dzus
JAC
Input Current 3.25 A Max @ 28 Vdc With Cover
APPROVED 03-28-24 NCAGE CODE PART NO. SHEET
Input Voltage Range 20.5 to 32.2 Vdc KDV L00N3 JA72-410C 1/1
Operating Temperature MATERIAL: N/A -45 °C to +70 °C DOC. NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA72-410C 3D Model Rev A.SLDDRW
Survival Temperature -55 °C to +85 °C
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Vibration SM, SB and U2FF1
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JA72
Storage Capacity 1 lb. [450 g]
