Specifications

Installation

0.13in 3.2mm 0.31in 7.9mm

SECTION A-A
0.25in 6.4mm THRU ALL
2.87in
72.9mm 0.20in
5.1mm
0.18in 4.5mm
0.33in 8.4mm X 100° 0.37in
9.4mm

3.17in
80.6mm
3.57in
90.7mm
A
3.75in MAX 95.3mm MAX A

1.87in 47.5mm 2.63in 66.7mm

3.50in 0.13in
88.9mm 3.3mm
5.37in
136.3mm
5.75in MAX
146.1mm MAX

Weight: TBD lb. [TBD Kg] Max
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE: 0.01 TITLE
3 DEC PLACE: 0.005

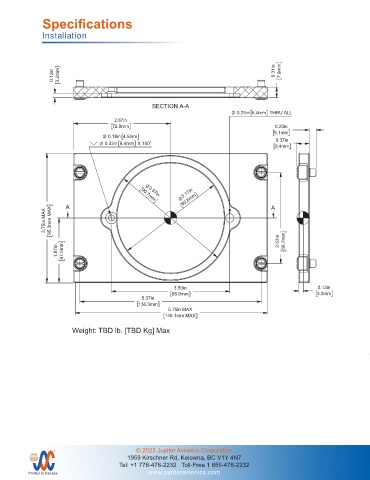

ANGLES: 0.5 DEG Round Clamp Mounting Plate - MS28042-2A - 10 Dzus
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA71-RC2A 1/1
MATERIAL: 6061-T6 ALUM. CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: Flat Black DRAWING NOT TO SCALE JA71-RC2A Mechanical Installation Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
