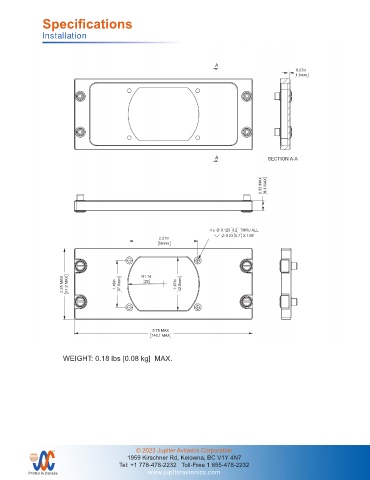

Page 197 - Jupiter Product Guide 2025 Rev N

Specifications

Installation

A
0.07in
1.8mm

A SECTION A-A

0.32 MAX 8.1 MAX

4 x 0.125 3.2 THRU ALL
0.23 5.7 X 100°
2.21in
56mm

2.25 MAX 57.2 MAX 1.48in 37.5mm R1.14 1.67in 42.5mm
29

5.75 MAX
146.1 MAX

WEIGHT: 0.18 lbs [0.08 kg] MAX.

UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
WEIGHT: 0.18 lbs [0.08 kg] MAX. 3 DEC PLACE: 0.005 Six Dzus - Single Trig Instrument
ANGLES:
0.5 DEG
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA71-TT1 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A JA71-TT1 Mechanical Installation Rev A.SLDDRW
DRAWING NOT TO SCALE
TM © 2023 Jupiter Avionics Corporation
JUPITER AVIONICS TEMPLATE SOLIDWORKS PORTRAIT SIZEB REV B.DRWDOT
