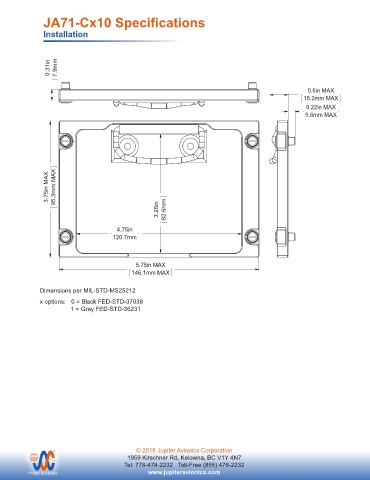

JA71-Cx10 Specifications

Installation

0.31in 7.9mm

0.6in MAX
15.2mm MAX
0.22in MAX
5.6mm MAX

3.75in MAX 95.3mm MAX

3.25in 82.6mm

4.75in
120.7mm

5.75in MAX
146.1mm MAX

UNLESS OTHERWISE SPECIFIED PREPARED TAT
Dimensions per MIL-STD-MS25212 DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE:
x options: 0 = Black FED-STD-37038 0.01 CHECKED TITLE 10 Dzus Blanking Plate
3 DEC PLACE:
0.005
ANGLES:
1 = Gray FED-STD-36231 0.5 DEG
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA71-010 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA71-010 Mechanical Installation Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
