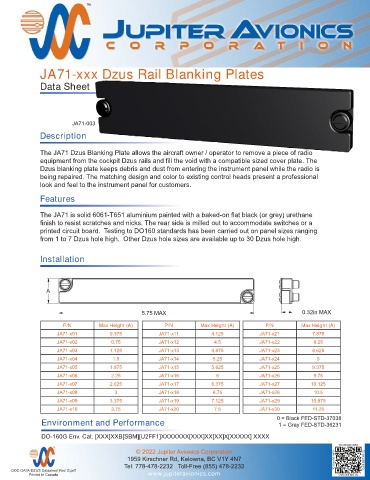

Page 211 - Jupiter Product Guide 2025 Rev N

JA71-xxx Dzus Rail Blanking Plates

Data Sheet

JA71-003
Description

The JA71 Dzus Blanking Plate allows the aircraft owner / operator to remove a piece of radio
equipment from the cockpit Dzus rails and fill the void with a compatible sized cover plate. The
Dzus blanking plate keeps debris and dust from entering the instrument panel while the radio is
being repaired. The matching design and color to existing control heads present a professional
look and feel to the instrument panel for customers.

Features

The JA71 is solid 6061-T651 aluminium painted with a baked-on flat black (or grey) urethane
finish to resist scratches and nicks. The rear side is milled out to accommodate switches or a
printed circuit board. Testing to DO160 standards has been carried out on panel sizes ranging
from 1 to 7 Dzus hole high. Other Dzus hole sizes are available up to 30 Dzus hole high.

Installation

A

5.75 MAX 0.32in MAX
P/N Max Height (A) P/N Max Height (A) P/N Max Height (A)
JA71-x01 0.375 JA71-x11 4.125 JA71-x21 7.875
JA71-x02 0.75 JA71-x12 4.5 JA71-x22 8.25
JA71-x03 1.125 JA71-x13 4.875 JA71-x23 8.625
JA71-x04 1.5 UNLESS OTHERWISE SPECIFIED 5.25 JA71-x24 9
JA71-x14
DIMENSIONS ARE IN INCHES PREPARED TAT
JA71-x05 1.875 ANGLES ARE IN DEGREES 5.625 JA71-x25 9.375
JA71-x15
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE:
0.01
JA71-x06
CENTER OF GRAVITY 2.25 3 DEC PLACE: 0.005 JA71-x16 6 TITLE JA71-x26 9.75
2 Dzus Blanking Plate
0.5 DEG
ANGLES:
0.03in [0.8mm]
JA71-x07 2.625 JA71-x17 6.375 JA71-x27 10.125
WEIGHT: 0.07 lbs [0.03 kg] MAX. 3 JA71-x18 APPROVED 6.75 NCAGE CODE PART NO. 10.5 SHEET
JA71-x08
JA71-x28
1/1
L00N3
JA71-002
JA71-x09 3.375 MATERIAL: N/A JA71-x19 CONFIDENTIAL & PROPRIETARY DOC. NO. JA71-x29 10.875
7.125
FINISH: N/A TO JUPITER AVIONICS CORP. JA71-002 Mechanical Installation Rev D.SLDDRW
DRAWING NOT TO SCALE
JA71-x10 3.75 JA71-x20 7.5 JA71-x30 11.25
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Environment and Performance 0 = Black FED-STD-37038
1 = Gray FED-STD-36231
DO-160G Env. Cat. [XXX]XXB[SBM][U2FF1]XXXXXXX[XXX]XX[XX]X[XXXXX] XXXX
TO ONLINE INFO
TM
© 2022 Jupiter Avionics Corporation
1959 Kirschner Rd, Kelowna, BC V1Y 4N7 TO ONLINE INFO TO ONLINE INFO
Tel: 778-478-2232 Toll-Free (855) 478-2232
DOC-DATA-DZUS Datasheet Rev G.pdf
