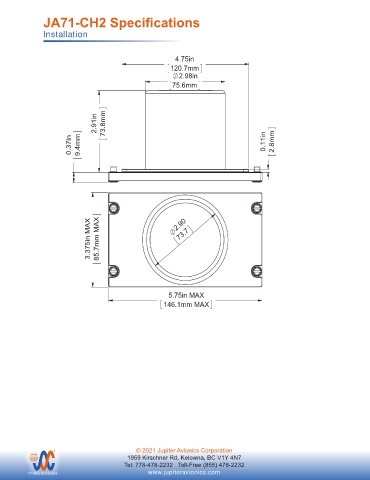

JA71-CH2 Specifications

Installation

4.75in
120.7mm
2.98in
75.6mm

2.91in 73.8mm

0.37in 9.4mm 0.11in 2.8mm

3.375in MAX 85.7mm MAX 2.90
73.7

5.75in MAX
146.1mm MAX

UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1 04-23-21
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG Cup Holder - Single
JAC
APPROVED 04-27-21 NCAGE CODE PART NO. SHEET
KDV L00N3 JA71-CH1 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA71-CH1 Mechanical Installation Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
