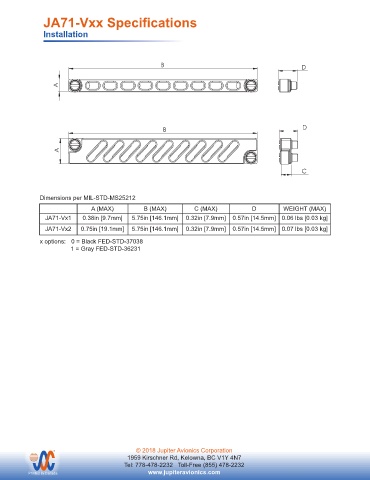

JA71-Vxx Specifications

Installation

B D

A

B D

A

C

Dimensions per MIL-STD-MS25212
A (MAX) B (MAX) C (MAX) D WEIGHT (MAX)
JA71-Vx1 0.38in [9.7mm] 5.75in [146.1mm] 0.32in [7.9mm] 0.57in [14.5mm] 0.06 lbs [0.03 kg]
5.75in [146.1mm]
0.32in [7.9mm]
JA71-Vx2 0.75in [19.1mm] UNLESS OTHERWISE SPECIFIED PREPARED NAME 0.57in [14.5mm] 0.07 lbs [0.03 kg]
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
x options: 0 = Black FED-STD-37038 0.01 CHECKED TITLE
1 DEC PLACE: 0.1
2 DEC PLACE:
3 DEC PLACE:
1 = Gray FED-STD-36231 0.005 TITLE
0.5 DEG
ANGLES:
APPROVED NCAGE CODE PART NO. SHEET
L00N3 XXX-XXXX-XXXX 1/1
MATERIAL: See Notes CONFIDENTIAL & PROPRIETARY DOC. NO.
FINISH: See Notes TO JUPITER AVIONICS CORP. XXX-XXXX-XXXX Fabrication Rev A.SLDDRW
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
