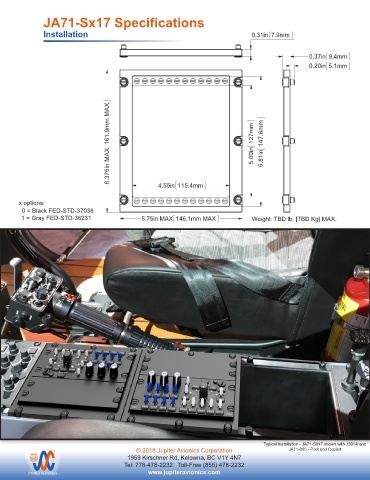

JA71-Sx17 Specifications

Installation 0.31in 7.9mm

0.37in 9.4mm
0.20in 5.1mm

161.9mm MAX 127mm 147.6mm

6.375in MAX 5.00in 5.81in

4.55in 115.4mm

x options:
0 = Black FED-STD-37038
1 = Gray FED-STD-36231 5.75in MAX 146.1mm MAX Weight: TBD lb. [TBD Kg] MAX.

UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
TOLERANCES:
CENTER OF GRAVITY 1 DEC PLACE: 0.1 CHECKED TITLE
2 DEC PLACE:
0.01
0.03in [0.8mm] 3 DEC PLACE: 0.005 Sideways Dzus Mounting Plate - 17 Dzus
ANGLES:
0.5 DEG
WEIGHT: ?.?? lbs [?.?? kg] MAX. SHEET
APPROVED NCAGE CODE PART NO.
L00N3 JA71-S017 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA71-S017 Mechanical Installation Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT

Typical Installation - JA71-S017 shown with J301A and
