Page 217 - Jupiter Product Guide 2025 Rev N

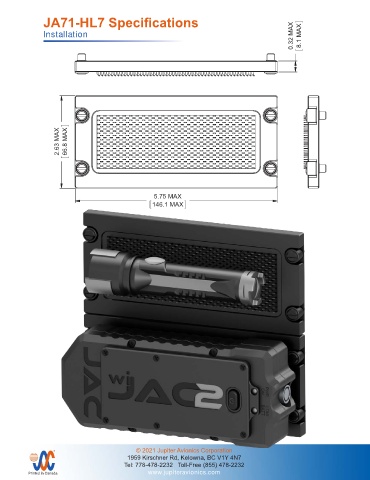

JA71-HL7 Specifications

Installation 0.32 MAX 8.1 MAX

2.63 MAX 66.8 MAX

5.75 MAX
146.1 MAX

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1 CHECKED 06-21-21
CENTER OF GRAVITY 2 DEC PLACE: 0.01 TAT TITLE Hook and Loop - 7 Dzus
0.005
3 DEC PLACE:
0.03in [0.8mm] ANGLES: 0.5 DEG
JAC
WEIGHT: 0.21 lbs [0.1kg] MAX. APPROVED 07-05-21 NCAGE CODE PART NO. SHEET
KDV L00N3 JA71-HL7 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA71-HL7 Mechanical Installation Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
