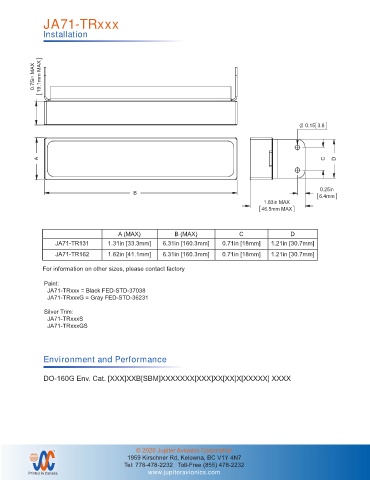

JA71-TRxxx

Installation

0.75in MAX 19.1mm MAX

0.15 3.8

A C D

0.25in
B
6.4mm
1.83in MAX
46.5mm MAX

A (MAX) B (MAX) C D
JA71-TR131 1.31in [33.3mm] 6.31in [160.3mm] 0.71in [18mm] 1.21in [30.7mm]

JA71-TR162 1.62in [41.1mm] 6.31in [160.3mm] 0.71in [18mm] 1.21in [30.7mm]
For information on other sizes, please contact factory

Paint: UNLESS OTHERWISE SPECIFIED
JA71-TRxxx = Black FED-STD-37038 PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
JA71-TRxxxG = Gray FED-STD-36231 JAC
TOLERANCES:
CENTER OF GRAVITY 1 DEC PLACE: 0.1 CHECKED 09-19-19 TITLE

2 DEC PLACE: 0.01
0.03in [0.8mm] 3 DEC PLACE: 0.005 TAT 1.31in High - Tray Mount - Blanking Plate
Silver Trim:
JA71-TRxxxS ANGLES: 0.5 DEG
WEIGHT: TBD lbs [TBD kg] MAX. JAC
JA71-TRxxxGS
APPROVED 09-23-19 NCAGE CODE PART NO. SHEET
KDV L00N3 JA71-TR131 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA71-TR131 Mechanical Installation Rev A.SLDDRW
Environment and Performance
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
DO-160G Env. Cat. [XXX]XXB[SBM]XXXXXXX[XXX]XX[XX]X[XXXXX] XXXX
