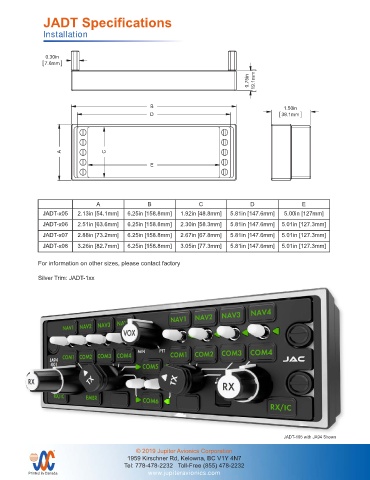

Page 227 - Jupiter Product Guide 2025 Rev N

JADT Specifications

Installation

0.30in
7.6mm

0.75in 19.1mm

B 1.50in
D 38.1mm

A C

E

A B C D E
JADT-x05 2.13in [54.1mm] 6.25in [158.8mm] 1.92in [48.8mm] 5.81in [147.6mm] 5.00in [127mm]
JADT-x06 2.51in [63.6mm] 6.25in [158.8mm] 2.30in [58.3mm] 5.81in [147.6mm] 5.01in [127.3mm]

JADT-x07 2.88in [73.2mm] 6.25in [158.8mm] 2.67in [67.8mm] 5.81in [147.6mm] 5.01in [127.3mm]
JADT-x08 3.26in [82.7mm] 6.25in [158.8mm] 3.05in [77.3mm] 5.81in [147.6mm] 5.01in [127.3mm]

For information on other sizes, please contact factory
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
Silver Trim: JADT-1xx TOLERANCES: 0.1
1 DEC PLACE:
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG 5 Dzus to Tray Adapter
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JADT-005 1/2
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JADT-005 Mechanical Installation Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT

JADT-105 with JA94 Shown

TM © 2019 Jupiter Avionics Corporation
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: 778-478-2232 Toll-Free (855) 478-2232
Printed in Canada www.jupiteravionics.com
