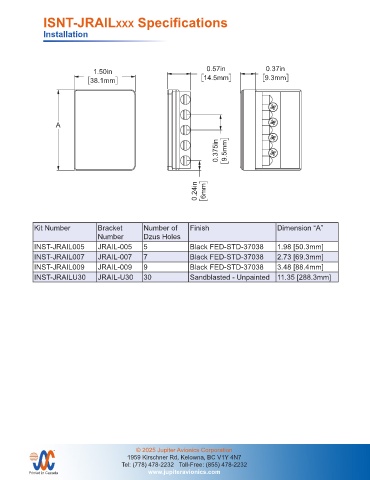

ISNT-JRAILXXX Specifications

Installation

1.50in 0.57in 0.37in
38.1mm 14.5mm 9.3mm

A

0.375in 9.5mm

0.24in 6mm

Kit Number Bracket Number of Finish Dimension “A”
Number Dzus Holes
INST-JRAIL005 JRAIL-005 5 Black FED-STD-37038 1.98 [50.3mm]
Black FED-STD-37038
INST-JRAIL007 JRAIL-007 7 UNLESS OTHERWISE SPECIFIED PREPARED NAME 2.73 [69.3mm]
DIMENSIONS ARE IN INCHES
INST-JRAIL009 JRAIL-009 9 ANGLES ARE IN DEGREES CHECKED 3.48 [88.4mm]
Black FED-STD-37038
TOLERANCES:
1 DEC PLACE: 0.1
TITLE
INST-JRAILU30 JRAIL-U30 30 2 DEC PLACE: 0.01 11.35 [288.3mm] Dzus Rail - 5 Dzus
Sandblasted - Unpainted
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JRAIL-005 1/1
MATERIAL: See Notes CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: See Notes DRAWING NOT TO SCALE JRAIL-005 Mechanical Installation Rev A.SLDDRW
