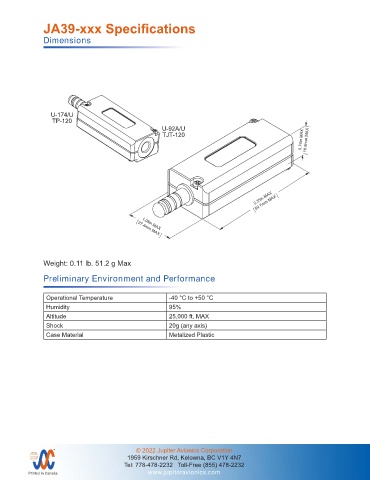

JA39-xxx Specifications

Dimensions

U-174/U
TP-120
U-92A/U
0.74in MAX 18.8mm MAX
TJT-120

2.35in MAX
59.7mm MAX

1.08in MAX
27.4mm MAX

Weight: 0.11 lb. 51.2 g Max

Preliminary Environment and Performance
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1 CHECKED
01-10-20
Operational Temperature 3 DEC PLACE: 0.005 -40 °C to +50 °C TAT TITLE
2 DEC PLACE: 0.01
ANGLES: 0.5 DEG Headset Adapter - 230 Ohm Mic - 230
Humidity 95% JAC Ohm Phones
APPROVED
Altitude 25,000 ft. MAX 02-28-20 NCAGE CODE PART NO. SHEET
L00N3
1/1
JA39-022
KDV
Shock MATERIAL: N/A 20g (any axis) DOC. NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA39-022 3D Model Rev B.SLDDRW
Case Material Metalized Plastic
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
