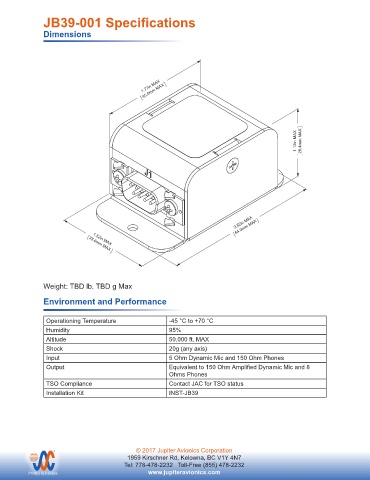

JB39-001 Specifications

Dimensions

1.77in MAX
45.0mm MAX

1.12in MAX 28.4mm MAX

2.52in MAX
64.0mm MAX

1.52in MAX
38.6mm MAX

UNLESS OTHERWISE SPECIFIED
Weight: TBD lb. TBD g Max PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
Environment and Performance TITLE Low Impedance Headset Adapter - 5 Ohm Mic - 8 Ohm
2 DEC PLACE:
0.01
3 DEC PLACE:
0.005
0.5 DEG
ANGLES:
Phones - Remote Mount
APPROVED NCAGE CODE PART NO. SHEET
Operationing Temperature -45 °C to +70 °C L00N3 JB39-001 1/1
CONFIDENTIAL & PROPRIETARY DOC. NO.
Humidity MATERIAL: N/A 95%
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JB39-001 3D Model Rev A.SLDDRW
Altitude
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT 50,000 ft. MAX
Shock 20g (any axis)
Input 5 Ohm Dynamic Mic and 150 Ohm Phones
Output Equivalent to 150 Ohm Amplified Dynamic Mic and 8
Ohms Phones
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JB39
