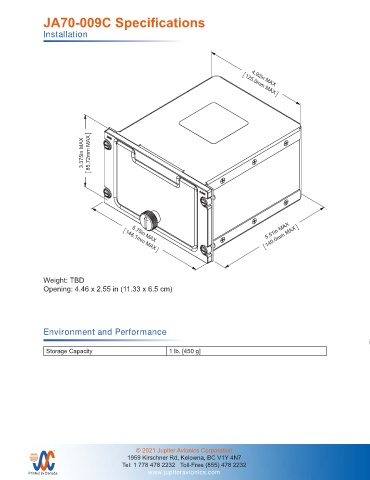

JA70-009C Specifications

Installation 125.0mm MAX

4.92in MAX

3.375in MAX 85.72mm MAX

5.51in MAX
140.0mm MAX
5.75in MAX
146.1mm MAX

Weight: TBD
Opening: 4.46 x 2.55 in (11.33 x 6.5 cm)

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
JAC
TOLERANCES:
Environment and Performance CHECKED 02-12-20
0.1
1 DEC PLACE:
2 DEC PLACE: 0.01
3 DEC PLACE: 0.005 TAT TITLE
ANGLES: 0.5 DEG Nine Dzus - Glove Box with Cover
Storage Capacity 1 lb. [450 g] JAC
APPROVED 03-09-20 NCAGE CODE PART NO. SHEET
KDV L00N3 JA70-009C 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA70-009C 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
