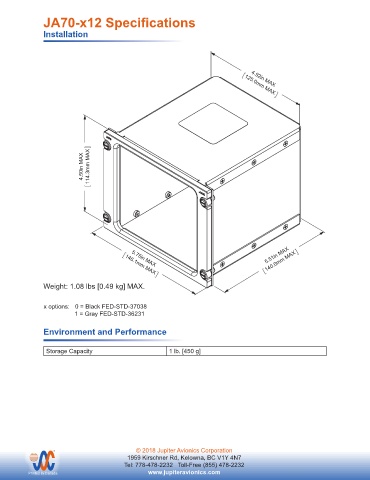

JA70-x12 Specifications

Installation 125.0mm MAX

4.92in MAX

4.50in MAX 114.3mm MAX

5.51in MAX
140.0mm MAX

5.75in MAX
146.1mm MAX
Weight: 1.08 lbs [0.49 kg] MAX.

x options: 0 = Black FED-STD-37038
1 = Gray FED-STD-36231
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
TOLERANCES:
Environment and Performance CHECKED
1 DEC PLACE: 0.1
0.01
2 DEC PLACE:
3 DEC PLACE: 0.005 TITLE
ANGLES: 0.5 DEG Twelve Dzus - Glove Box
Storage Capacity 1 lb. [450 g]
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA70-012 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA70-012 3D Model Rev A.SLDDRW
