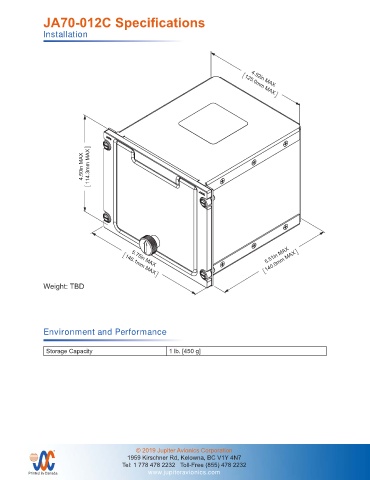

JA70-012C Specifications

Installation 125.0mm MAX

4.92in MAX

4.50in MAX 114.3mm MAX

5.51in MAX
140.0mm MAX

5.75in MAX
146.1mm MAX
Weight: TBD

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
Environment and Performance CHECKED
0.1
1 DEC PLACE:
2 DEC PLACE: 0.01
3 DEC PLACE: 0.005 TITLE
ANGLES: 0.5 DEG Twelve Dzus - Glove Box with Cover
Storage Capacity 1 lb. [450 g]
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA70-012C 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA70-012C 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
