Page 147 - Jupiter Product Guide 2025 Rev N

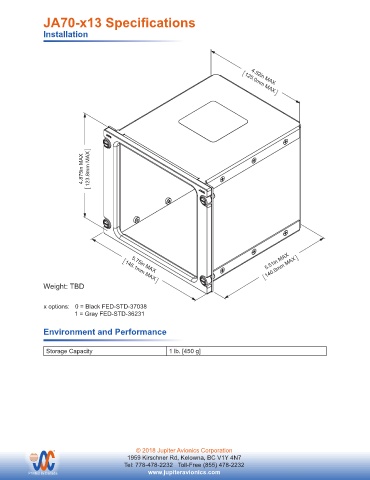

JA70-x13 Specifications

Installation 125.0mm MAX

4.92in MAX

4.875in MAX 123.8mm MAX

5.51in MAX
140.0mm MAX
5.75in MAX
146.1mm MAX
Weight: TBD

x options: 0 = Black FED-STD-37038
1 = Gray FED-STD-36231
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
Environment and Performance
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE: 0.01 TITLE
3 DEC PLACE: 0.005
Storage Capacity ANGLES: 0.5 DEG 1 lb. [450 g] Thirteen Dzus - Glove Box
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA70-013 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA70-013 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT

© 2018 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: 778-478-2232 Toll-Free (855) 478-2232
Printed in Canada www.jupiteravionics.com
