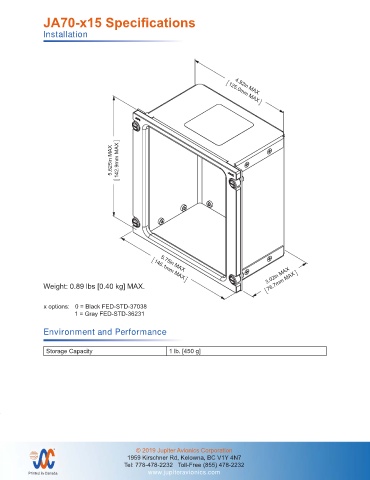

JA70-x15 Specifications

Installation 125.0mm MAX

4.92in MAX

5.625in MAX 142.9mm MAX

3.02in MAX
5.75in MAX
146.1mm MAX
Weight: 0.89 lbs [0.40 kg] MAX. 76.7mm MAX

x options: 0 = Black FED-STD-37038
1 = Gray FED-STD-36231

Environment and Performance

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
Storage Capacity ANGLES ARE IN DEGREES 1 lb. [450 g] JAC
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE: 0.01 10-09-19 TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG Fifteen Dzus - Glove Box
JAC
APPROVED 10-10-19 NCAGE CODE PART NO. SHEET
KDV L00N3 JA70-015 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA70-015 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
