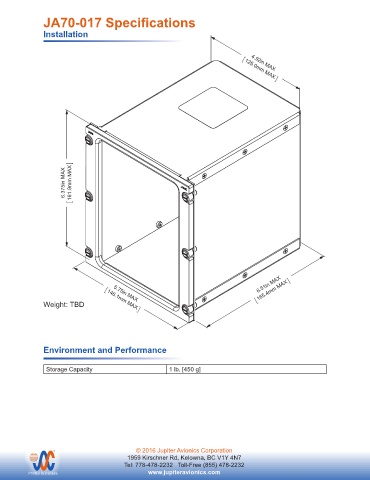

JA70-017 Specifications

Installation 125.0mm MAX

4.92in MAX

6.375in MAX 161.9mm MAX

6.51in MAX
165.4mm MAX

5.75in MAX
Weight: TBD 146.1mm MAX

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
Environment and Performance
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE: 0.01 TITLE
3 DEC PLACE: 0.005
Storage Capacity ANGLES: 0.5 DEG 1 lb. [450 g] Seventeen Dzus - Glove Box
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA70-017 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA70-017 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
