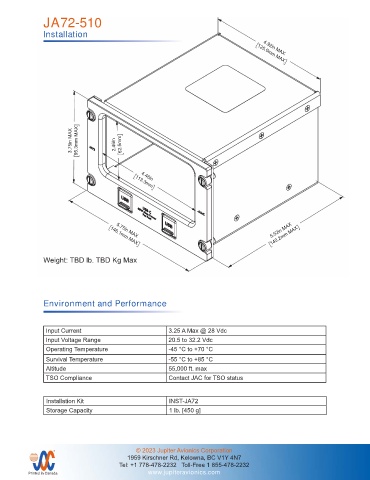

JA72-510

Installation 125.0mm MAX

4.92in MAX

3.75in MAX 95.3mm MAX 2.46in 62.5mm 113.3mm

4.46in

5.52in MAX
140.2mm MAX
5.75in MAX
146.1mm MAX

Weight: TBD lb. TBD Kg Max

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
Environment and Performance CHECKED TITLE
0.01
2 DEC PLACE:
0.005
3 DEC PLACE:
ANGLES: 0.5 DEG Glove Box with Dual USB-C Charger - 10 Dzus
APPROVED NCAGE CODE PART NO. SHEET
Input Current 3.25 A Max @ 28 Vdc L00N3 JA72-510 1/1
CONFIDENTIAL & PROPRIETARY
Input Voltage Range MATERIAL: N/A 20.5 to 32.2 Vdc DOC. NO.
JA72-510 3D Model Rev A.SLDDRW
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE
Operating Temperature -45 °C to +70 °C
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Survival Temperature -55 °C to +85 °C
Altitude 55,000 ft. max
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JA72
Storage Capacity 1 lb. [450 g]
