Make Better Use of Empty Panel Space with JAC Glove Boxes

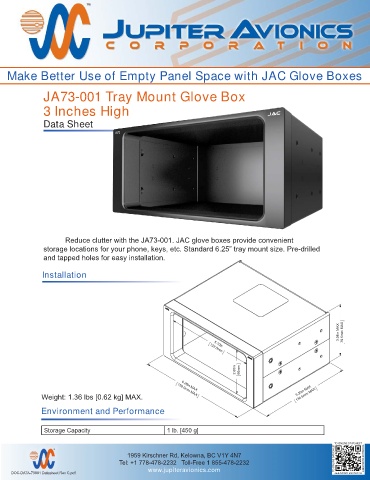

JA73-001 Tray Mount Glove Box

3 Inches High

Data Sheet

Reduce clutter with the JA73-001. JAC glove boxes provide convenient
storage locations for your phone, keys, etc. Standard 6.25” tray mount size. Pre-drilled
and tapped holes for easy installation.

Installation

3.01in MAX 76.5mm MAX

5.10in
129.5mm

2.60in 66mm

5.30in MAX
6.26in MAX
Weight: 1.36 lbs [0.62 kg] MAX. 134.6mm MAX
159.0mm MAX
Environment and Performance

Storage Capacity 1 lb. [450 g]
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
TO ONLINE DATASHEETTO ONLINE DATASHEET
1 DEC PLACE: 0.1
TM 2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005
1959 Kirschner Rd, Kelowna, BC V1Y 4N7 Tray Mount Glove Box - 3 Inches High
ANGLES: 0.5 DEG
Tel: +1 778-478-2232 Toll-Free 1 855-478-2232 NCAGE CODE PART NO. TO ONLINE DATASHEETTO ONLINE DATASHEET SHEET
APPROVED
www.jupiteravionics.com L00N3 JA73-001 1/1
DOC-DATA-73001 Datasheet Rev C.pdf MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
FINISH: N/A TO JUPITER AVIONICS CORP. JA73-001 3D Model Rev A.SLDDRW
DRAWING NOT TO SCALE
