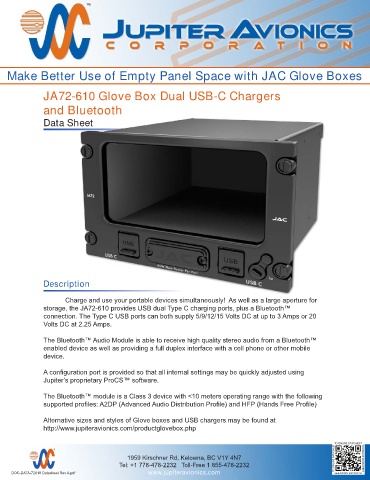

Page 166 - Jupiter Product Guide 2025 Rev N

Make Better Use of Empty Panel Space with JAC Glove Boxes

JA72-610 Glove Box Dual USB-C Chargers

and Bluetooth

Data Sheet

Description

Charge and use your portable devices simultaneously! As well as a large aperture for
storage, the JA72-610 provides USB dual Type C charging ports, plus a Bluetooth™
connection. The Type C USB ports can both supply 5/9/12/15 Volts DC at up to 3 Amps or 20
Volts DC at 2.25 Amps.

The Bluetooth™ Audio Module is able to receive high quality stereo audio from a Bluetooth™
enabled device as well as providing a full duplex interface with a cell phone or other mobile
device.

A configuration port is provided so that all internal settings may be quickly adjusted using
Jupiter’s proprietary ProCS™ software.

The Bluetooth™ module is a Class 3 device with <10 meters operating range with the following
supported profiles: A2DP (Advanced Audio Distribution Profile) and HFP (Hands Free Profile)

Alternative sizes and styles of Glove boxes and USB chargers may be found at
http://www.jupiteravionics.com/productglovebox.php
