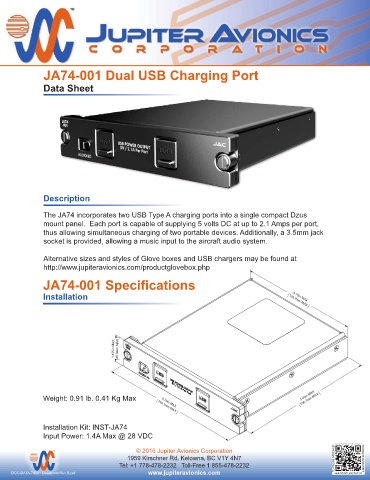

JA74-001 Dual USB Charging Port

Data Sheet

Description

The JA74 incorporates two USB Type A charging ports into a single compact Dzus
mount panel. Each port is capable of supplying 5 volts DC at up to 2.1 Amps per port,
thus allowing simultaneous charging of two portable devices. Additionally, a 3.5mm jack
socket is provided, allowing a music input to the aircraft audio system.

Alternative sizes and styles of Glove boxes and USB chargers may be found at
http://www.jupiteravionics.com/productglovebox.php

JA74-001 Specifications

Installation 120.9mm MAX
4.76in MAX

1.125in MAX 28.6mm MAX

138.7mm MAX
Weight: 0.91 lb. 0.41 Kg Max 146.1mm MAX 5.46in MAX
5.75in MAX

Installation Kit: INST-JA74
Input Power: 1.4A Max @ 28 VDC

TO ONLINE DATASHEETTO ONLINE DATASHEET
© 2016 Jupiter Avionics Corporation
TM UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
1959 Kirschner Rd, Kelowna, BC V1Y 4N7 JAC TO ONLINE DATASHEETTO ONLINE DATASHEET
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED 05-03-16
0.01
2 DEC PLACE:
Tel: +1 778-478-2232 Toll-Free 1 855-478-2232 TAT TITLE Dual USB Charging Port
3 DEC PLACE:
0.005
0.5 DEG
ANGLES:
DOC-DATA-74001 Datasheet Rev B.pdf www.jupiteravionics.com JAC
APPROVED 05-03-16 NCAGE CODE PART NO. SHEET
KDV L00N3 JA74-001 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA74-001 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
