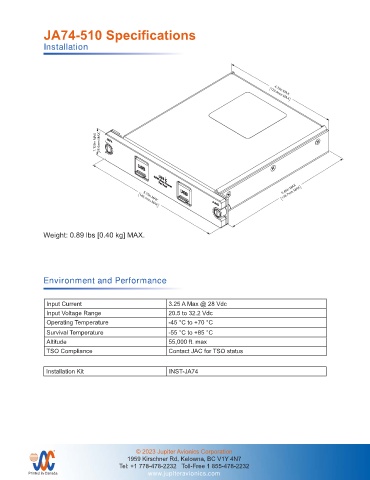

JA74-510 Specifications

Installation 120.9mm MAX

4.76in MAX

1.125in MAX 28.6mm MAX

5.46in MAX
138.7mm MAX
5.75in MAX
146.1mm MAX

Weight: 0.89 lbs [0.40 kg] MAX.
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1 CHECKED 01-12-23
2 DEC PLACE: 0.01 TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG Dual USB-C Charger
JAC
APPROVED 01-23-23 NCAGE CODE PART NO. SHEET
1/1
JA74-510
L00N3
KDV
Environment and Performance MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
FINISH: N/A TO JUPITER AVIONICS CORP. JA74-510 3D Model Rev A.SLDDRW
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Input Current 3.25 A Max @ 28 Vdc
Input Voltage Range 20.5 to 32.2 Vdc
Operating Temperature -45 °C to +70 °C
Survival Temperature -55 °C to +85 °C
Altitude 55,000 ft. max
TSO Compliance Contact JAC for TSO status

Installation Kit INST-JA74
