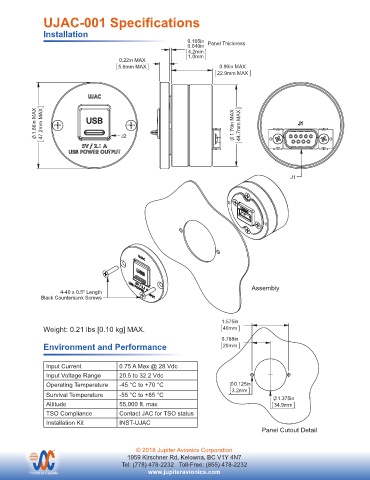

UJAC-001 Specifications

Installation
0.165in Panel Thickness
0.040in
4.2mm
0.22in MAX 1.0mm
5.6mm MAX 0.90in MAX
22.9mm MAX

1.86in MAX 47.2mm MAX J2 1.76in MAX 44.7mm MAX

J1

Assembly
4-40 x 0.5" Length
Black Countersunk Screws

1.575in
Weight: 0.21 lbs [0.10 kg] MAX. 40mm
0.788in
Environment and Performance 20mm

Input Current 0.75 A Max @ 28 Vdc
Input Voltage Range 20.5 to 32.2 Vdc
Operating Temperature -45 °C to +70 °C 0.125in
3.2mm
Survival Temperature -55 °C to +85 °C 1.375in
Altitude 55,000 ft. max 34.9mm
TSO Compliance Contact JAC for TSO status
Installation Kit INST-UJAC
Panel Cutout Detail
